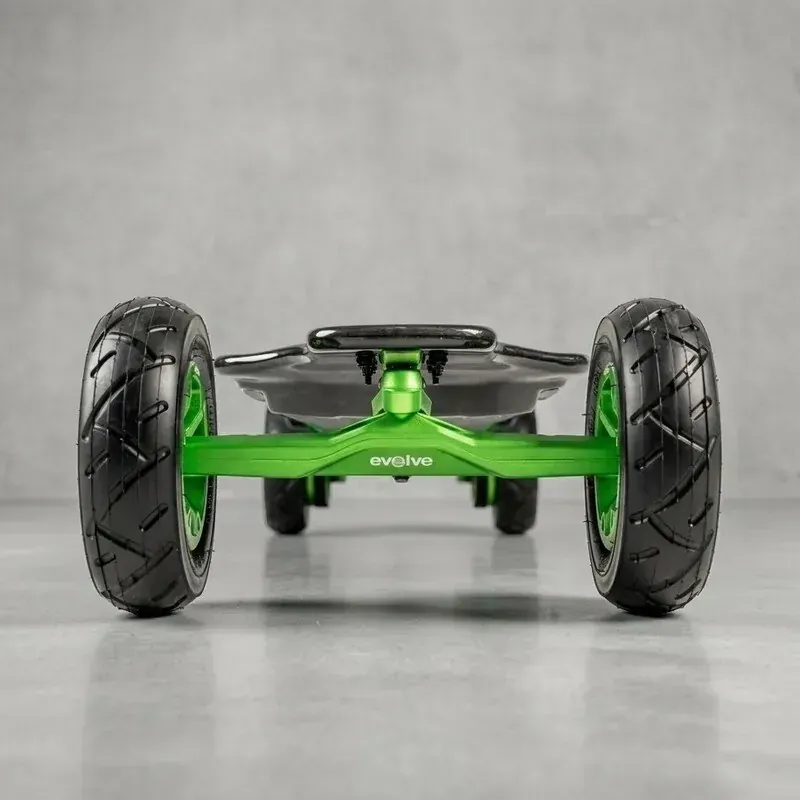

DIABLO CARBON GREEN MAINFRAME
THE CIRCUIT SIGNATURE

The Diablo Carbon Green Mainframe is the most customized edition ever released from Evolve Labs. Production is strictly limited, making each board as rare as it is distinctive.
Based on the Diablo Carbon, the Green Mainframe adds a unique visual signature. You get laser-cut grip tape with a circuit board pattern on a carbon fiber deck. A fully green CNC drive gear completes the look. This setup delivers 7000W of power, speeds up to 55 km/h, and a range of up to 80 km in street mode or 50 km all-terrain. It features 66T Drive Gears, CNC rims, and SuperCarve 2 Trucks.
This edition uses the same electronics and firmware as the standard Diablo Carbon. Power, speed, and range are identical. Only the design changes. This limited edition is now sold out.
Exclusive Green Mainframe Edition Features
- Laser-cut grip tape with circuit board pattern
- Carbon fiber under the grip
- Green CNC aluminum 66T Drive Gears
- Green CNC aluminum rims
- Exclusive green SuperCarve 2 Trucks
- 175mm / 7-inch all-terrain tires
- Strictly limited Evolve Labs production
- Limited edition, no re-release

Laser-Cut Circuit Grip Tape
LASER-CUT, A UNIQUE SIGNATURE
The grip tape features a laser-cut circuit board pattern. The deck's forged carbon fiber remains visible beneath the design's lines. This creates a sense of depth and reveals the board's raw material. This visual signature is unlike any Evolve edition before it.

66T CNC Green Drive Gears
THE DRIVE GEARS IN THEIR MOST DISTINCTIVE FINISH
The 66T Drive Gears in green-finished CNC aluminum deliver the full power of both 6374 motors (7000W total). Precision machining transfers torque with no loss at all. This colorway is exclusive: you won't find it on any other Diablo in the range.

CNC Green Rims
MACHINED HUBS, CORNERING GRIP
The green CNC aluminum rims integrate with the 175mm / 7-inch inflatable tires. This exclusive finish extends the Green Mainframe identity to the wheels. It also contributes to the overall rigidity of the all-terrain setup.

SuperCarve 2 Green Trucks
EVOLVE'S SIGNATURE CARVING IN GREEN
The SuperCarve 2 trucks, in an exclusive green finish, deliver the carving precision of the Diablo range. Forged and CNC machined, they combine high-speed stability with fine response in tight turns. This ensures a fluid and controlled ride on all types of surfaces.

A distinctive silhouette
CARBON MEETS THE CIRCUIT
The 100 cm forged carbon fiber deck pairs with the all-green drive gear for an instantly recognizable silhouette. The Green Mainframe is unlike any other Diablo Carbon. It's the object that takes over on performance.
Tech specs
| Base model | Diablo Carbon |
| Motors | 2 × 6374 3500W (7000W total) |
| Controller | EFOC 2.0 |
| Battery | Samsung 50S 21700, 43.2V 864Wh 20Ah |
| Range | Expect up to 80 km (street) or 50 km (all-terrain) range. |
| Top speed | 55 km/h |
| Deck | Forged carbon fiber, 100 cm (39.3") |
| Wheelbase | 96.5 cm (38") |
| Weight | 14.35 kg (31 lb) |
| Max load | 120 kg |
| Max gradient | Up to 45% |
| Braking | Adjustable EFOC2 regenerative braking |
| Charge time | 4 hours |
| Trucks | SuperCarve 2 Green |
| Tires | 175mm / 7-inch all-terrain tires, green CNC hubs |
| Drive Gears | 66T CNC Green |
| Remote control | Phaze CNC Aluminum |
| Lights | Integrated LEDs + Smart Brake Lights |
Frequently Asked Questions
The Diablo Carbon Green Mainframe is the collector's edition in Evolve's Diablo range. It shares the Diablo Carbon platform, featuring 7000 W of power, a top speed of 55 km/h, and up to 80 km of range, all built on a 100 cm forged carbon deck. The only difference is the finish. This 2-in-1 street and all-terrain electric skateboard can conquer 45% gradients. Evolve Labs produced it in a strictly limited series, and it is now sold out.
What is the difference between the Green Mainframe and the classic Diablo Carbon?
Performance is identical: 7000W, up to 55 km/h, and up to 80 km of range in street mode (50 km in all-terrain). The Green Mainframe stands out only with its unique visual signature: a laser-cut circuit grip tape and an entirely green CNC drive gear, including 66T Drive Gears, CNC rims, and SuperCarve 2 trucks.
How many units were produced?
Evolve Labs produced a strictly limited number of these. The exact quantity is not disclosed. Once stock is depleted, this edition will be removed from the catalog and will not be reissued in the same configuration.
Are the green components compatible with a standard Diablo Carbon?
Yes, every component, including the 66T Drive Gears, CNC Hubs, and SuperCarve 2 Trucks, is 100% compatible with a classic Diablo Carbon. The only difference is the color finishes. You can easily mount them on your current setup.
Is the Diablo Carbon Green Mainframe still available?
No. The Diablo Carbon Green Mainframe is now sold out, and this limited edition will not be reissued identically.
What is the range and charge time for the Diablo Carbon Green Mainframe?
The Diablo Carbon Green Mainframe features the same Samsung 50S 21700 battery (43.2 V, 864 Wh, 20 Ah) as the Diablo Carbon. It delivers up to 80 km of range in street mode and 50 km in all-terrain mode, with a full recharge in 4 hours. Its EFOC 2.0 electronics and firmware are identical to the standard model, meaning the green edition does not alter capacity or power management. Power and speed remain unchanged, at 7000 W and 55 km/h.
Is the Diablo Carbon Green Mainframe suitable for all-terrain riding?
Yes. The Diablo Carbon Green Mainframe rolls on 175 mm / 7-inch pneumatic tires mounted on green CNC rims, tackling inclines up to 45%. Its two 6374 motors (7000 W) and SuperCarve 2 trucks deliver stability and carving on both trails and asphalt. Expect up to 50 km of all-terrain range and 80 km in street mode. This true 2-in-1 board matches the performance of the standard Diablo Carbon.
How much does the Diablo Carbon Green Mainframe weigh, and what max load does it support?
The Diablo Carbon Green Mainframe weighs 14.35 kg, with a 100 cm forged carbon fiber deck (96.5 cm wheelbase), and supports a max load of 120 kg. The chassis is the same as the Diablo Carbon; only the finishes are different, including laser-cut circuit grip tape and a green CNC drive gear. This size remains portable for daily use while handling the 7000 W from its two 6374 motors.
Is the Diablo Carbon Green Mainframe guaranteed, and what after-sales support is available for a limited edition?
Yes. The Diablo Carbon Green Mainframe comes with the Evolve 2-year warranty and Evolve Europe after-sales support, just like the standard Diablo Carbon. Its components, including 66T Drive Gears, CNC hubs, and SuperCarve 2 trucks, are 100% compatible with the Diablo range. Wear parts remain available despite the limited nature of the edition. Only the exclusive green finishes will not be reissued once stock is depleted.
The Diablo Carbon Green Mainframe is a collectible board you can ride every day. It comes with the standard 2-year Evolve warranty, and all its components are 100% compatible with the Diablo range. It's a solid choice for riders who want a rare piece without sacrificing service or performance. To compare it with the standard version, check out the Diablo Carbon product page.
An Evolve Labs creation, designed to be truly one-of-a-kind.
Evolve Labs editions showcase the brand's rarest creations. These limited-quantity items are conceived as collector's pieces and are never reissued in the same form.
The Green Mainframe takes things further than previous editions. This isn't just a simple color finish applied to an existing drive gear; it's an entirely redesigned assembly, from the engraved grip tape to the CNC gears. It's a technical and visual signature for riders who demand a collector's item that doesn't compromise on performance.
Once stock runs out, this edition will be permanently removed from the catalog.
