The Evolve Diablo Carbon is the high-performance electric skateboard in the Diablo range. It has the best power-to-weight ratio on the market. Its 100% forged carbon fiber deck, Evolve Supercarve 2 Forged/CNC trucks, and 6374 brushless motors (7000W) let it hit a top speed of 55 km/h. You get a range of up to 80 km in street mode and 50 km in all-terrain mode. This 2-in-1 setup has interchangeable 97mm Street wheels or 175mm all-terrain wheels. It comes with a Samsung 50S battery, EFOC 2.0 dual-motor controller (50V 200A), and a Phaze remote control. Evolve Europe, a partner of Evolve Skateboards (founded in 2012), officially distributes it in Europe.
Published by Evolve Europe · · Updated · About · Brand Evolve Skateboards
ELECTRIC SKATEBOARD PERFORMANCE
MORE SPEED
Reach up to 55 km/h
in street configuration.
7000W POWER
Dual 6374 brushless motors
delivering 3500W each.
EXTENDED RANGE
Experience a range of up to 80 km in street mode,
or 50 km for all-terrain adventures.

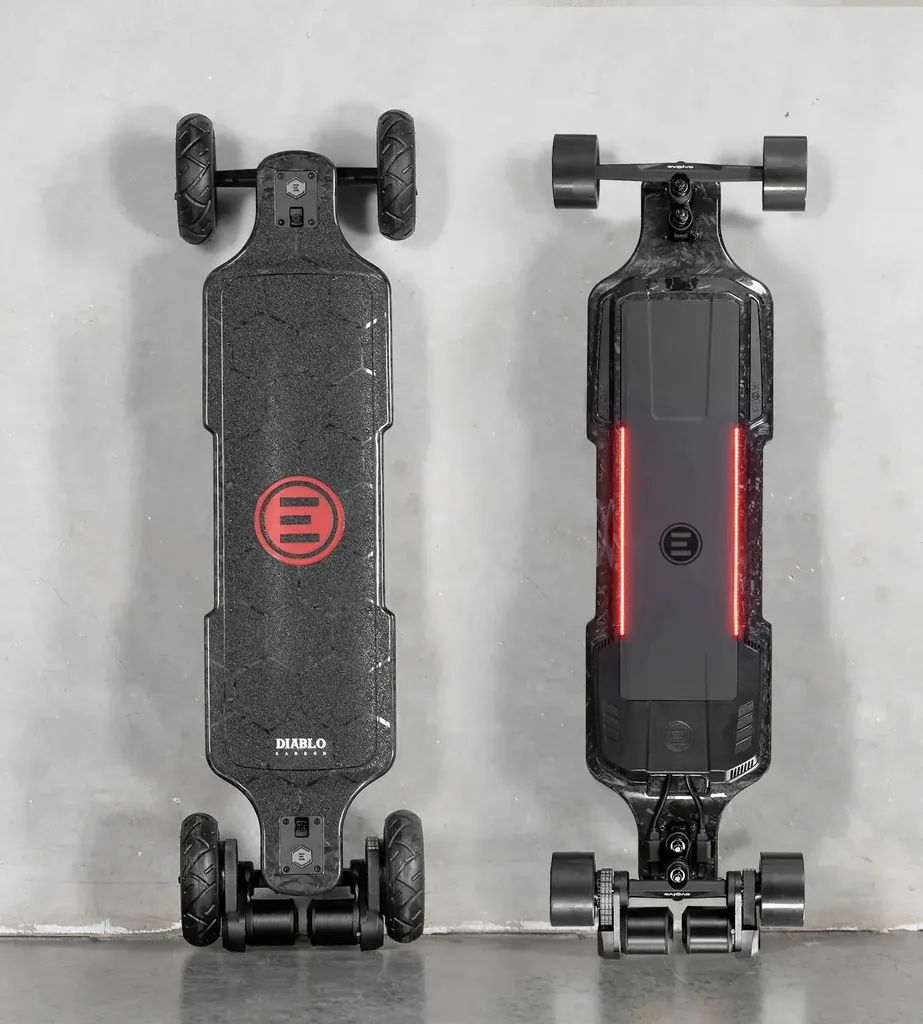

DISCOVER THE DIABLO CARBON
The Evolve Diablo Carbon stands as the high-performance electric skateboard in the Evolve lineup. It is designed for exhilarating carving and conquering all-terrain. It offers an impressive range of up to 80 km, a top speed of 55 km/h, and the raw power of two 3500W brushless motors (7000W total).
It is equipped with a forged carbon fiber deck, an 864Wh Samsung 50S battery, and the EFOC 2.0 controller. The Diablo Carbon delivers strength and flexibility for demanding riders.
- Enjoy a 2-year warranty on batteries, spare parts, and labor.
- After-sales support based in France (Pornichet).
PREMIUM EQUIPMENT
E-FOC 2.0 MOTOR CONTROLLER
Our custom 50V, dual 200A motor controller features FOC motor communication and Bluetooth connectivity. This ensures precise and reliable control for every ride.
SUPERCARVE 2 TRUCKS
The redesigned Super Carve 2 trucks deliver a more precise carving sensation and enhanced stability, even at high speeds.
3500W 6374 MOTORS
Its immense power ensures rapid acceleration and high speeds. You can climb hills up to 45% effortlessly.
100% CARBON FIBER DECK
The deck is rigid and lightweight, made from forged carbon fiber. The chassis integrates a CNC heatsink with discreet vents. This delivers performance without sacrificing style.
ACCESSORIES & CONNECTIVITY
PHAZE REMOTE CONTROL
A dual trigger provides ultra-smooth acceleration and braking. It features a robust CNC aluminum frame and intuitive controls.
EVOLVE APP
Access real-time ride data on a large color screen and customize your experience with four speed modes, perfectly configurable to your ride level.
COOLING SYSTEMS
Vents on the motor's outer casing actively aid in cooling. They also provide crucial protection from debris.
SAMSUNG 50S BATTERY
864Wh 20Ah 43.2V
Samsung 50S cells deliver unmatched reliability, up to 20% more ride time, and a maximum discharge current of 180A. This significantly boosts the Diablo's overall power.
2-year warranty
TWO BOARDS IN ONE
Evolve pioneered interchangeable wheels. This lets you ride in either street or all-terrain (AT) configuration.
ROAD LEGAL VERSION
The Diablo Carbon is available in a road-legal version for legal use on public roads, with a speed limit that complies with current EDPM regulations.
- Speed limited to 25 km/h (EDPM compliant)
- Integrated front/rear lights
- Horn included
- Certificate of conformity provided
DIABLO CARBON REVIEWS
Tested and approved by pro riders
Hear from our riders
Evolve Europe Customer Reviews
Cyril L.
"The brand and service are excellent and stand the test of time, which is essential for me."
, Verified buyerGianluca S.
Evolve is a reputable company with outstanding customer care.
, Verified buyerPeter W.
The website is clear and ordering is a breeze. My delivery arrived quickly and in perfect condition.
, Verified buyer
CUSTOM WHEELS
We offer a wide selection of street wheels and all-terrain tires. For all-terrain tires, we also offer different hub colors.
If you wish to customize your electric skateboard, please contact us.
TECHNICAL SPECIFICATIONS
What's in the box: skateboard charger, USB cable, tool, additional mounting hardware, Phaze remote control, and user manual.
Terms of Sale
This electric skateboard can exceed 25 km/h, so it's subject to specific regulations. Before you buy, please consult the Charter for unregistered motorized vehicles.
View the charterIN PICTURES
DIABLO CARBON ELECTRIC SKATEBOARD FAQ
The Diablo Carbon is designed for high-performance riding. It is the pinnacle of the Evolve electric skateboard range. It features a 100% forged carbon fiber deck, a massive 7000 W of power, a blistering 55 km/h top speed, and an impressive range of up to 80 km. It's ready for anything in its 2-in-1 street or all-terrain configuration. This FAQ covers the most common questions about its performance, battery, road use, and after-sales support.
What range does the Diablo Carbon offer?
The Diablo Carbon offers two distinct configurations to match your ride style. When equipped with 97 mm urethane street wheels, you'll experience an exceptional range of up to 80 km. Opt for the all-terrain setup with 175 mm (7-inch) pneumatic tires, and you'll still get approximately 50 km of range. This impressive range is powered by its robust 864 Wh Samsung 50S battery (20 Ah, 43.2 V). Keep in mind that your actual distance will vary based on rider weight, elevation changes, ambient temperature, tire pressure, and your chosen ride mode. Smooth cruising on flat terrain will maximize your range, while aggressive all-terrain or sport riding will naturally reduce it. The lower rolling resistance of the street wheels accounts for the difference compared to the all-terrain tires.
What is the top speed of the Diablo Carbon?
The Diablo Carbon hits 55 km/h in street configuration. This top speed comes from its dual 6374 brushless motor system. It delivers 3500 W per motor and 7000 W total. Its 100% forged carbon fiber deck and Evolve SuperCarve 2 Forged/CNC trucks provide the rigidity and stability needed at high speeds. Actual speed depends on wheel configuration, terrain, rider weight, and the mode selected on the Phaze remote control. For public road use, a road-legal version limited to 25 km/h is available.
What power do the Diablo Carbon's motors develop?
The Diablo Carbon's motors develop a total of 7000 W, with two 6374 brushless motors at 3500 W each. This power allows for inclines up to 45% and strong acceleration in both street and all-terrain modes. It supports a max load of 120 kg. The motors are managed by the EFOC 2.0 controller (50 V, 200 A) in a dual-motor configuration. This precisely controls acceleration and adjustable regenerative braking. Vents on the motor housing ensure cooling. They also protect against debris during intensive sessions.
What are the unique features of the Diablo Carbon's carbon deck?
The Diablo Carbon's deck is made of 100% forged carbon fiber. It is rigid, lightweight, and durable. It faithfully transmits power and improves stability at high speeds. It integrates a CNC heatsink with discreet vents. This dissipates heat from the electronics without compromising the board's sleek design. This carbon deck is what distinguishes the Diablo Carbon from the Diablo Bamboo. It is lighter (13.1 kg in street vs. 14.1 kg) and more rigid, for a more responsive, performance-oriented feel.
What is the charge time for the Diablo Carbon?
The Diablo Carbon's 864 Wh nominal, 1 008 Wh fully charged (20 Ah, 43,2 V nominal, 50,4 V fully charged) Samsung 50S battery fully recharges from 0 to 100% in approximately 4 hours using the standard charger provided. Naturally, a partial charge will be quicker. Your box includes the charger, a USB cable, a tool, additional mounting hardware, the Phaze remote control, and the user manual. To ensure the longevity of your battery, we recommend avoiding leaving it fully discharged or fully charged for extended periods.
Is the Diablo Carbon street legal?
In its Sport version, no: the Diablo Carbon reaches 55 km/h and is designed exclusively for private land and all-terrain use, not public roads. For legal riding on open roads, Evolve offers a dedicated road-legal version, which is limited to 25 km/h and fully compliant with French and European EDPM regulations. This version comes complete with front/rear lights, a horn, and a certificate of conformity. If your primary use is urban or road-based, we highly recommend opting for the corresponding Road Legal version. Our team can help guide you to the perfect configuration for your specific use and country before you make your purchase.
Where is the Diablo Carbon's after-sales support located?
Your Diablo Carbon's after-sales support is conveniently based right here in France, in Pornichet. We maintain a full stock of spare parts, including batteries, motors, SuperCarve 2 trucks, wheels, Phaze remote controls, and controllers. Our team also possesses the technical expertise for both routine maintenance and complex repairs. This means you won't have to deal with overseas centers. Your skateboard is covered by a comprehensive 2-year warranty on the battery, parts, and labor, with a French-speaking contact and significantly shorter lead times compared to after-sales support outside Europe. Simple routine maintenance, such as checking bolt tightness, tires pressure, and battery condition, is all it takes to preserve its peak performance over time.
Do you deliver the Diablo Carbon all over Europe?
Yes, we proudly deliver the Diablo Carbon throughout continental European Union, shipping directly from our warehouse in France. This ensures quicker lead times and helps you avoid import fees and procedures that come with shipments from outside the EU. Your skateboard will arrive securely protected in its original packaging, complete with all essential accessories, including the charger, Phaze remote control, tool, and mounting hardware. Precise lead times and shipping costs will vary depending on your destination country and will be clearly indicated during the order process. As the Samsung 50S battery is a high-capacity lithium battery, its transport adheres to all applicable regulations for battery freight.
For any questions not covered here, our team based in Pornichet, France, will answer you. They can help you choose between this Sport version and the road-legal version of the Diablo Carbon before purchase.
