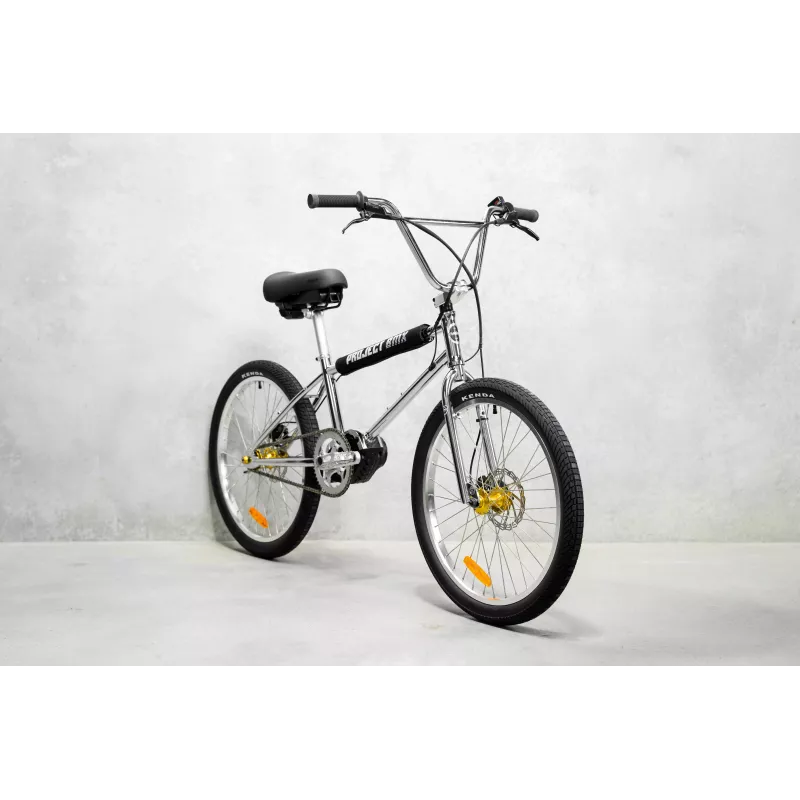

Project BMX

The Perfect Balance of Style and Electric Innovation

Play Video

Speed

Name: BMX - Private Land Version
Brand: Evolve Skateboards
SKU: 194
Price: 3190 EUR
Availability: InStock

Up to 36 km/h

Battery

Range

Up to 60 km with pedal assist

Private Land Version

This BMX version is built for thrill-seekers, with derestricted power ideal for private BMX tracks.

Integrated throttle: direct control and sharp response, perfect for technical terrain.
Exclusive use: reserved for enclosed areas, such as private BMX tracks.

Warning: This bike is designed for off-road use on private land only, such as BMX tracks or other enclosed areas. Not permitted on public roads or paths. Ensure you follow local regulations.

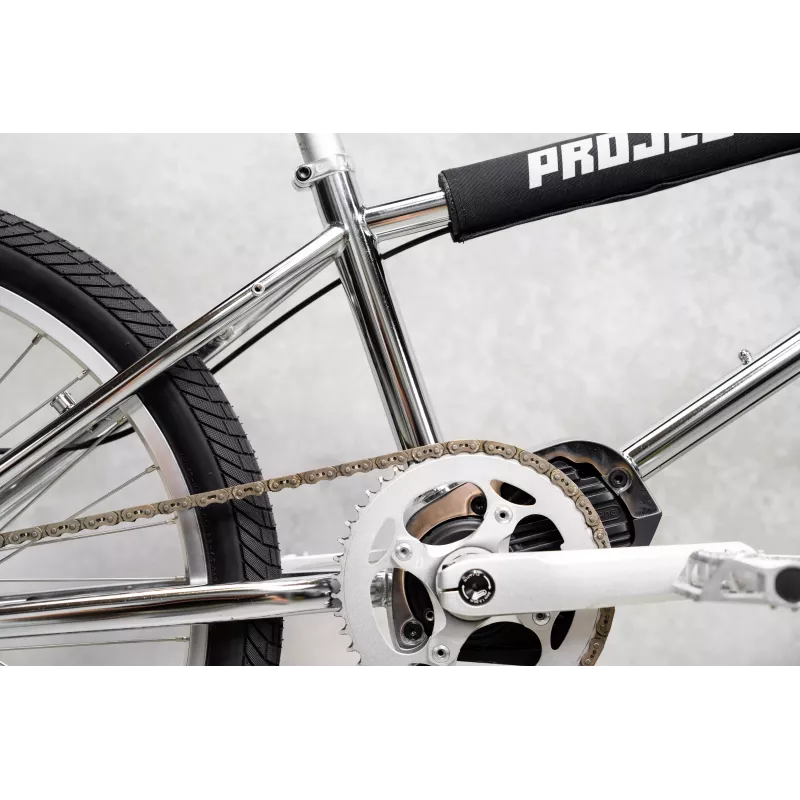

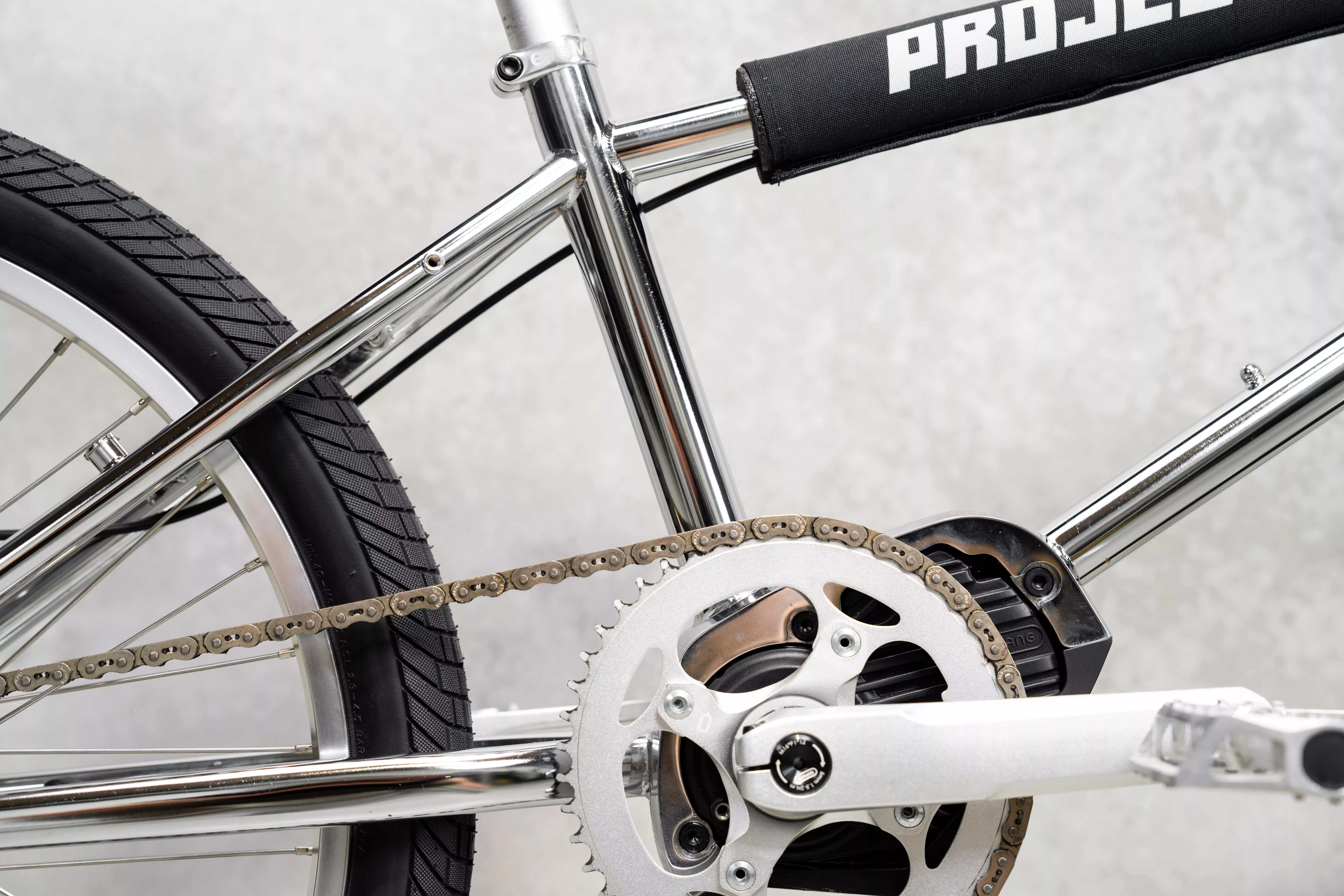

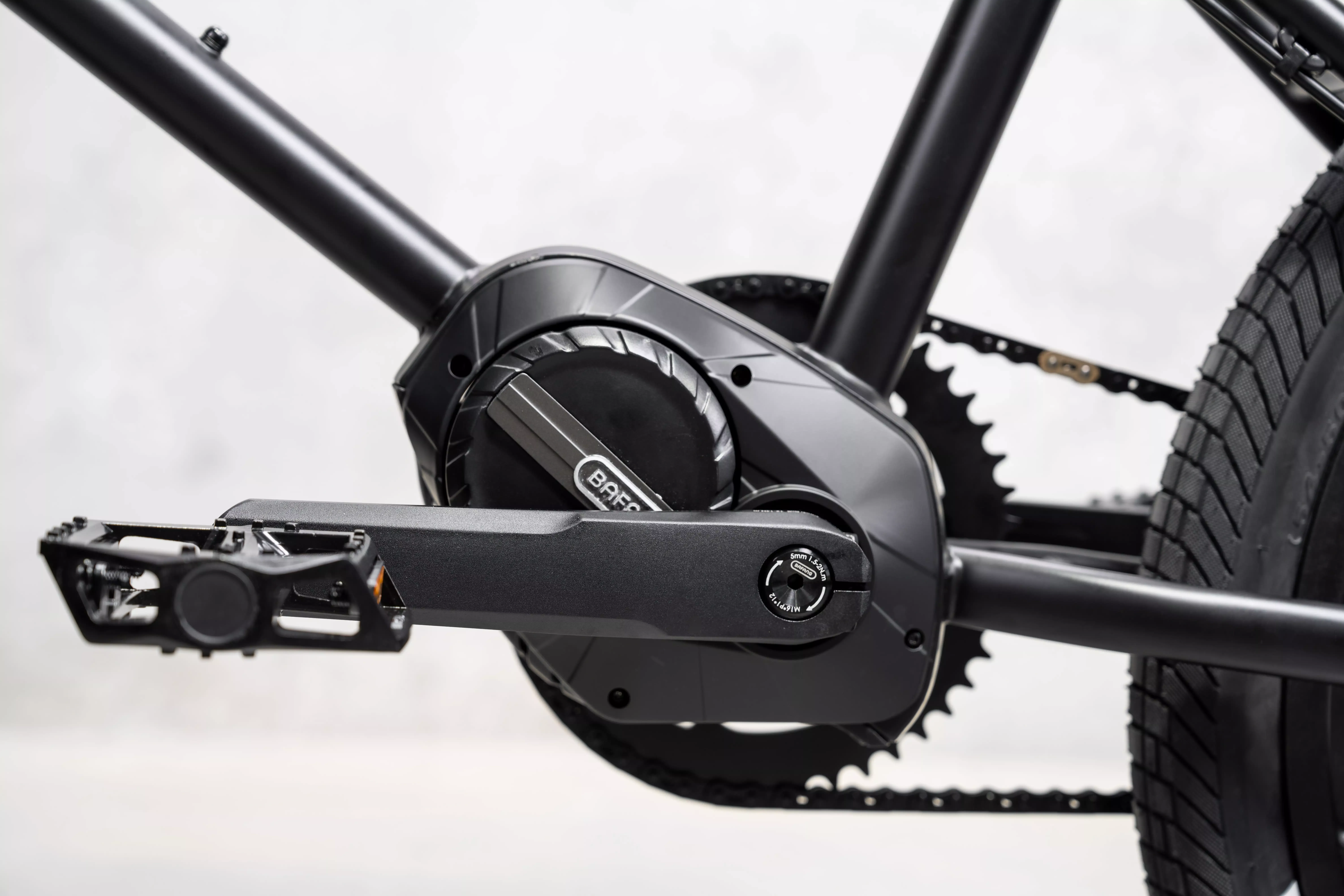

Drive System

The BAFANG Mid Drive M560 48V Gear Drive central system is preconfigured with Evolve ride settings, delivering an optimal riding experience from day one.

Firmware: 500W / 250W
Voltage: 48V
Rated power: 750W
Weight: 3,3 kg
Gears: Steel
Crank length: 170 mm
Sprocket: 47 teeth (47T)

Battery

The battery with Samsung 48X 21700 cells (9,6 Ah,36V) and weighing just 2 kg fits discreetly under the saddle while preserving the BMX’s clean look.

Up to 25 km of range in throttle mode
Up to 60 km of range with pedal assist
Top speed of 36 km/h
Fast charge in 3 hours
Integrated locking point for added security

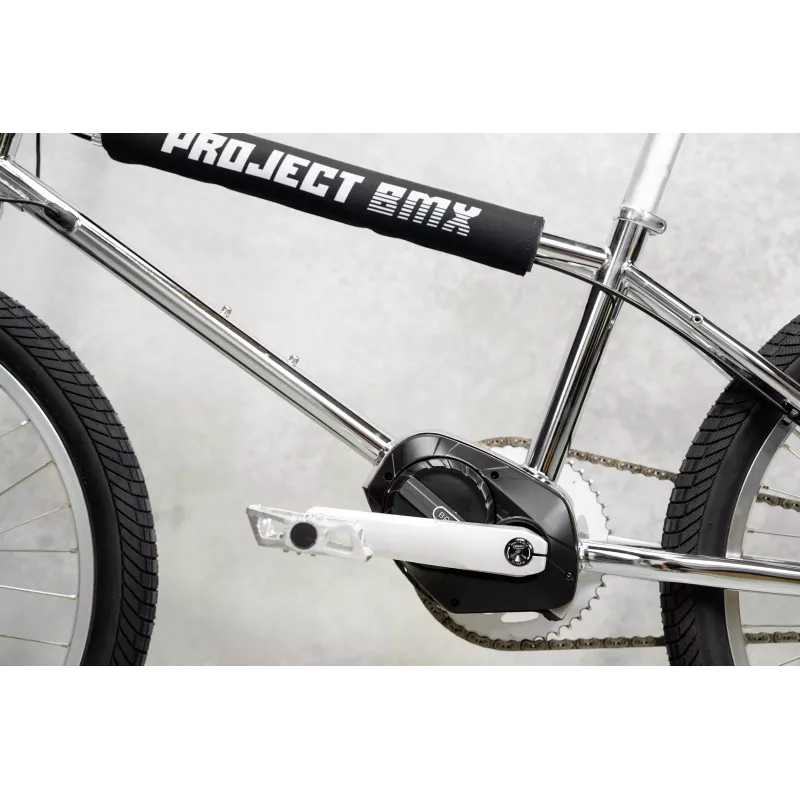

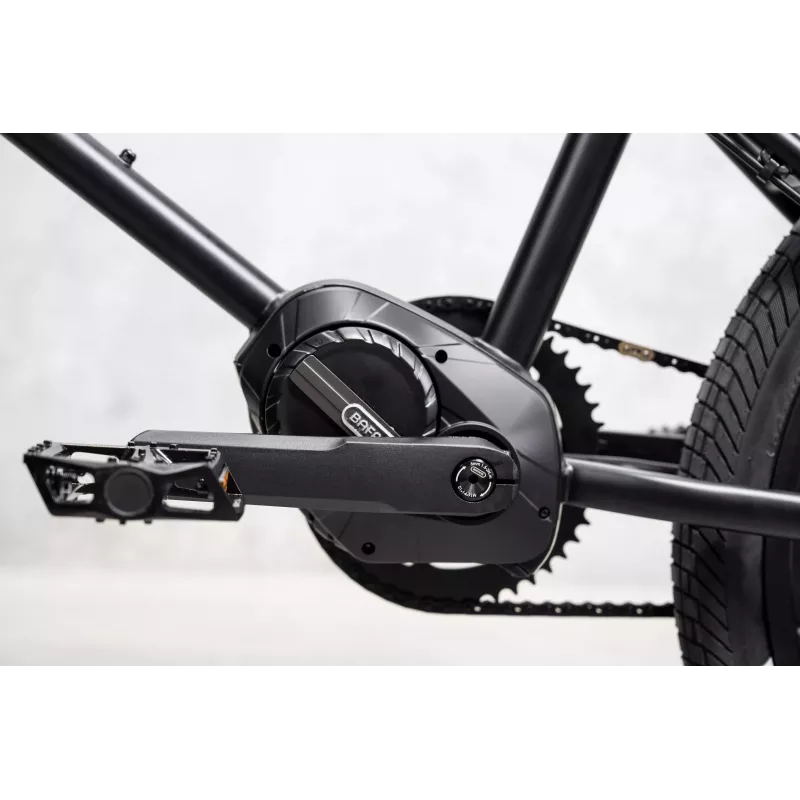

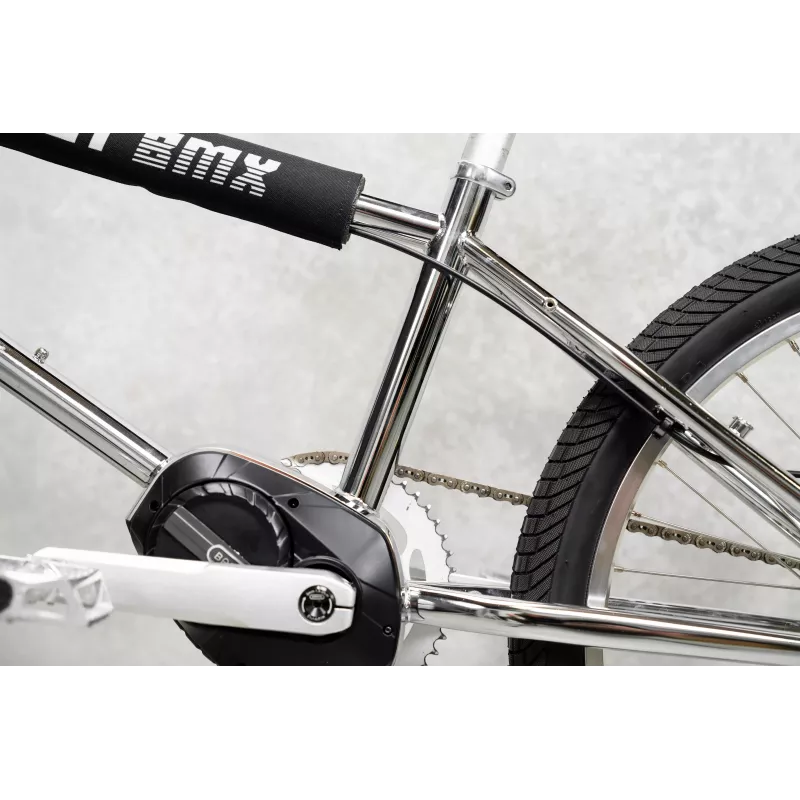

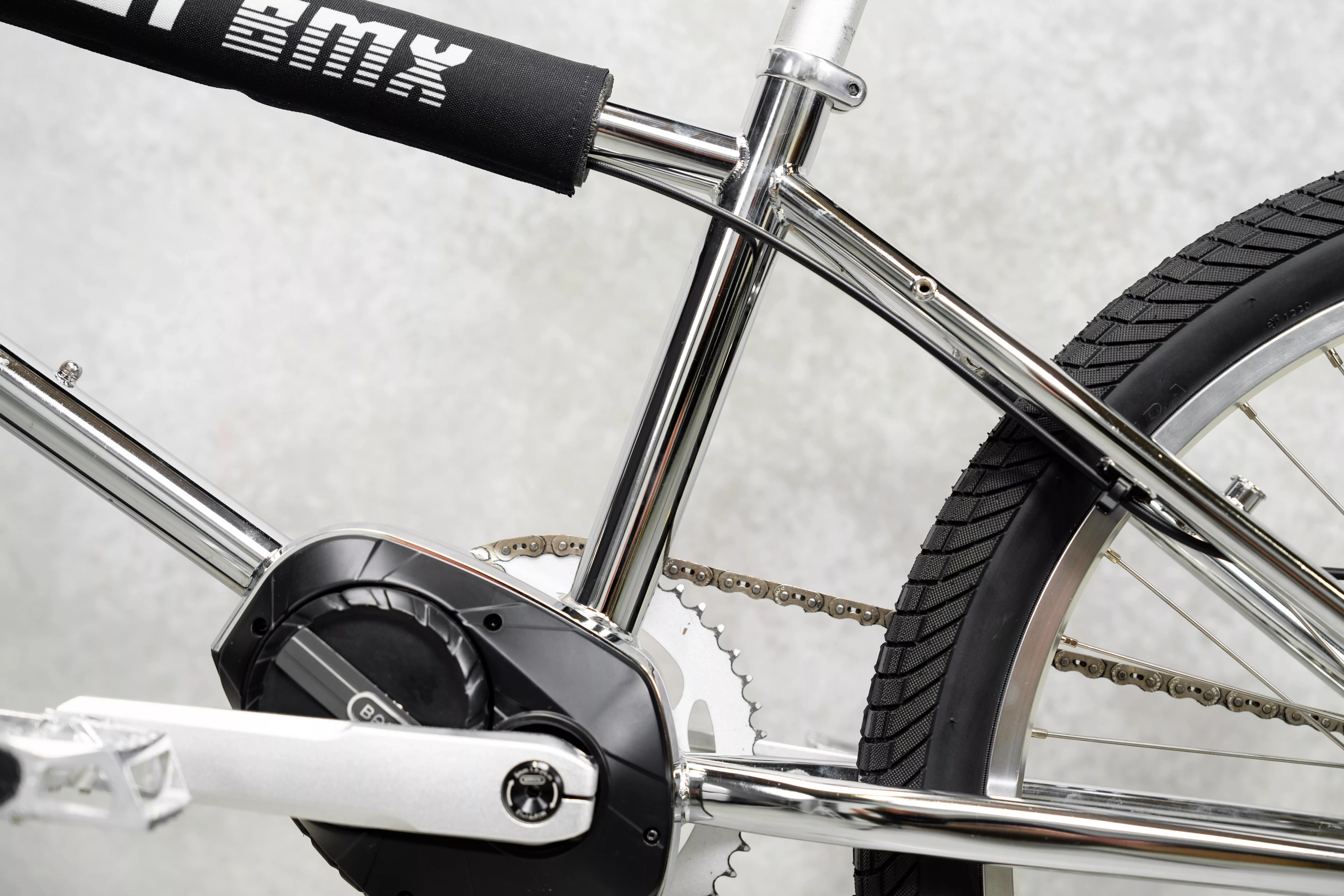

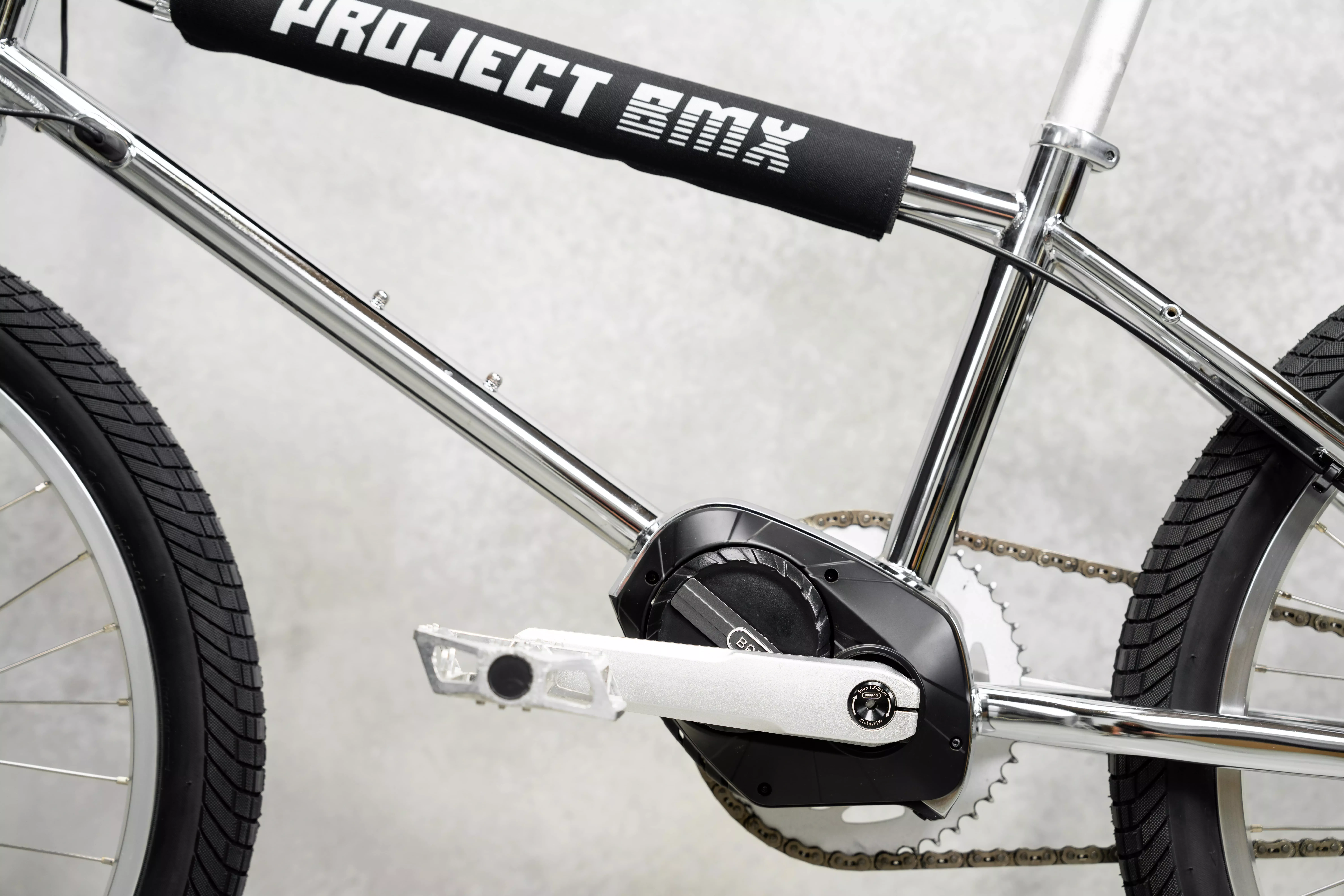

Mid-Mounted Motor

The mid-mounted motor offers better weight distribution, improved handling and smooth pedal assist, while eliminating drawbacks linked to rotational mass on the rear wheel.

Quieter and directly connected to the crankset, it also improves motor efficiency to maximise the bike’s range.

RIDES LIKE A BIKE

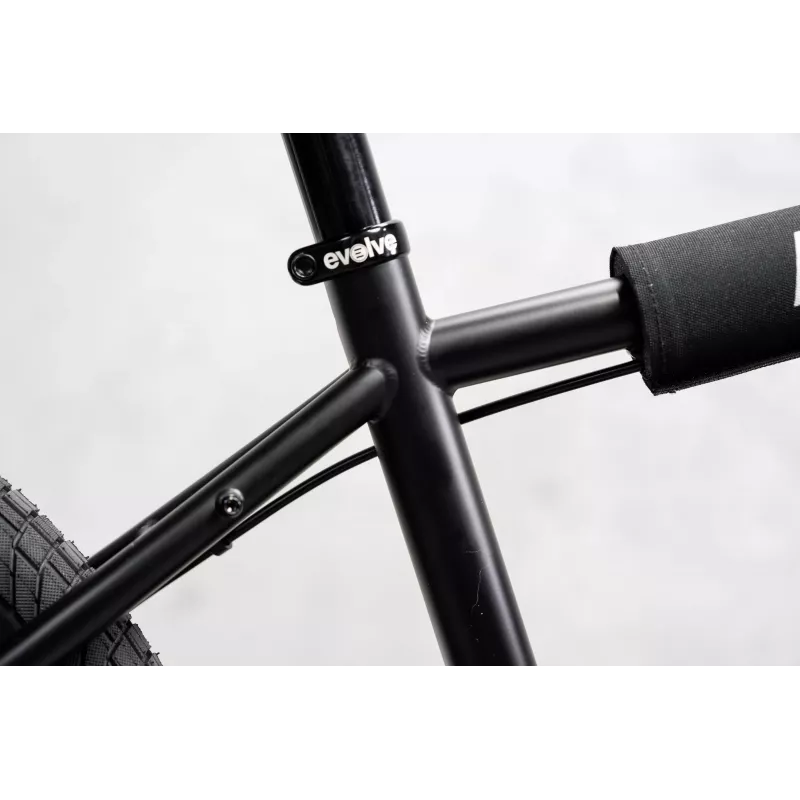

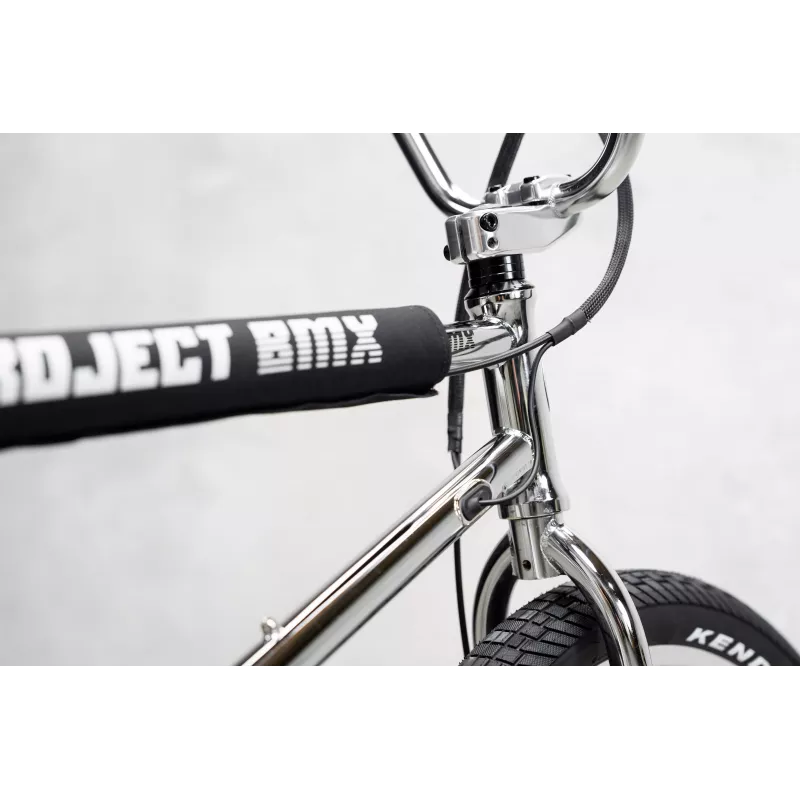

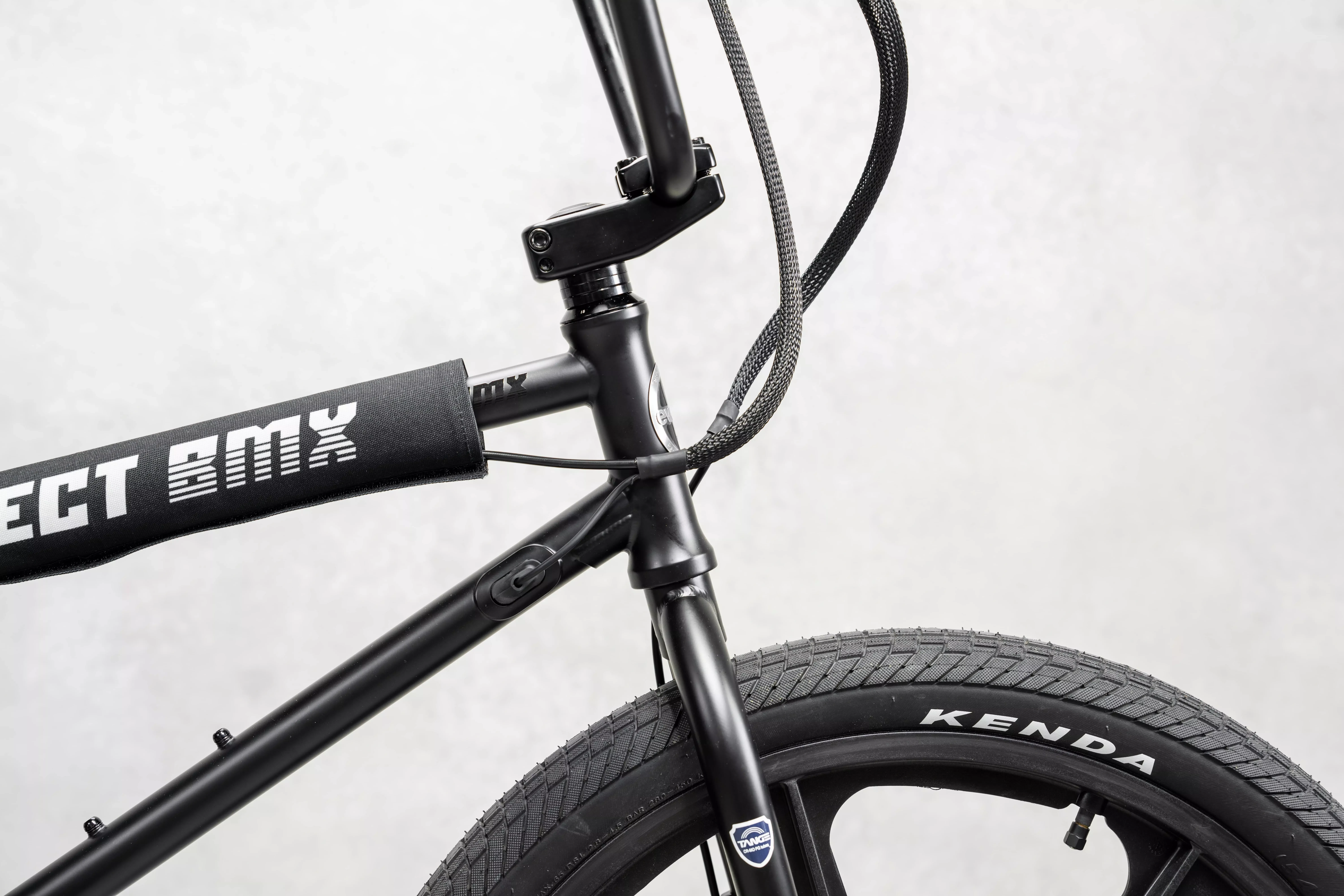

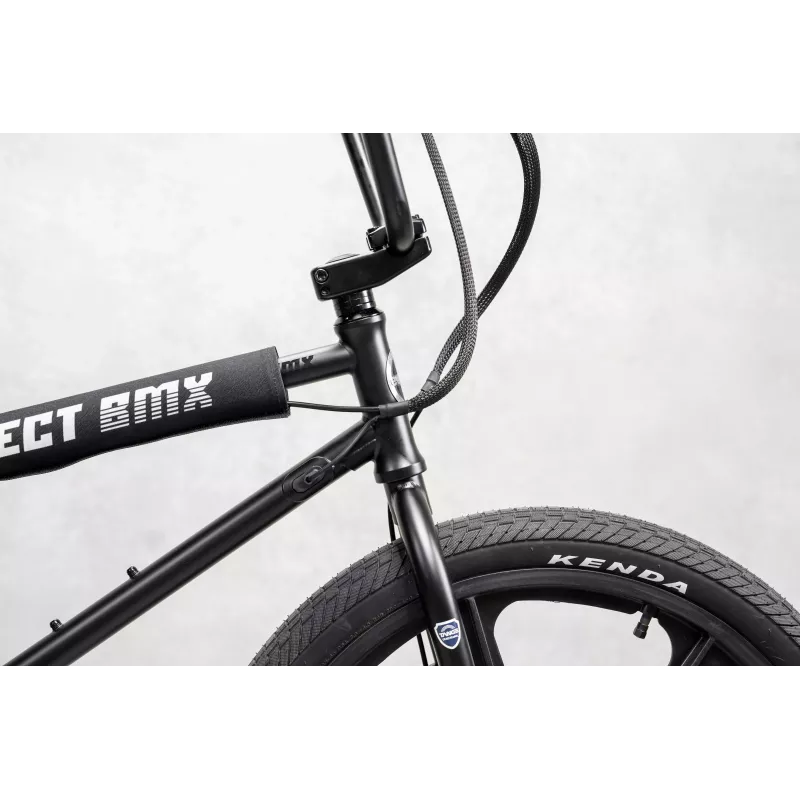

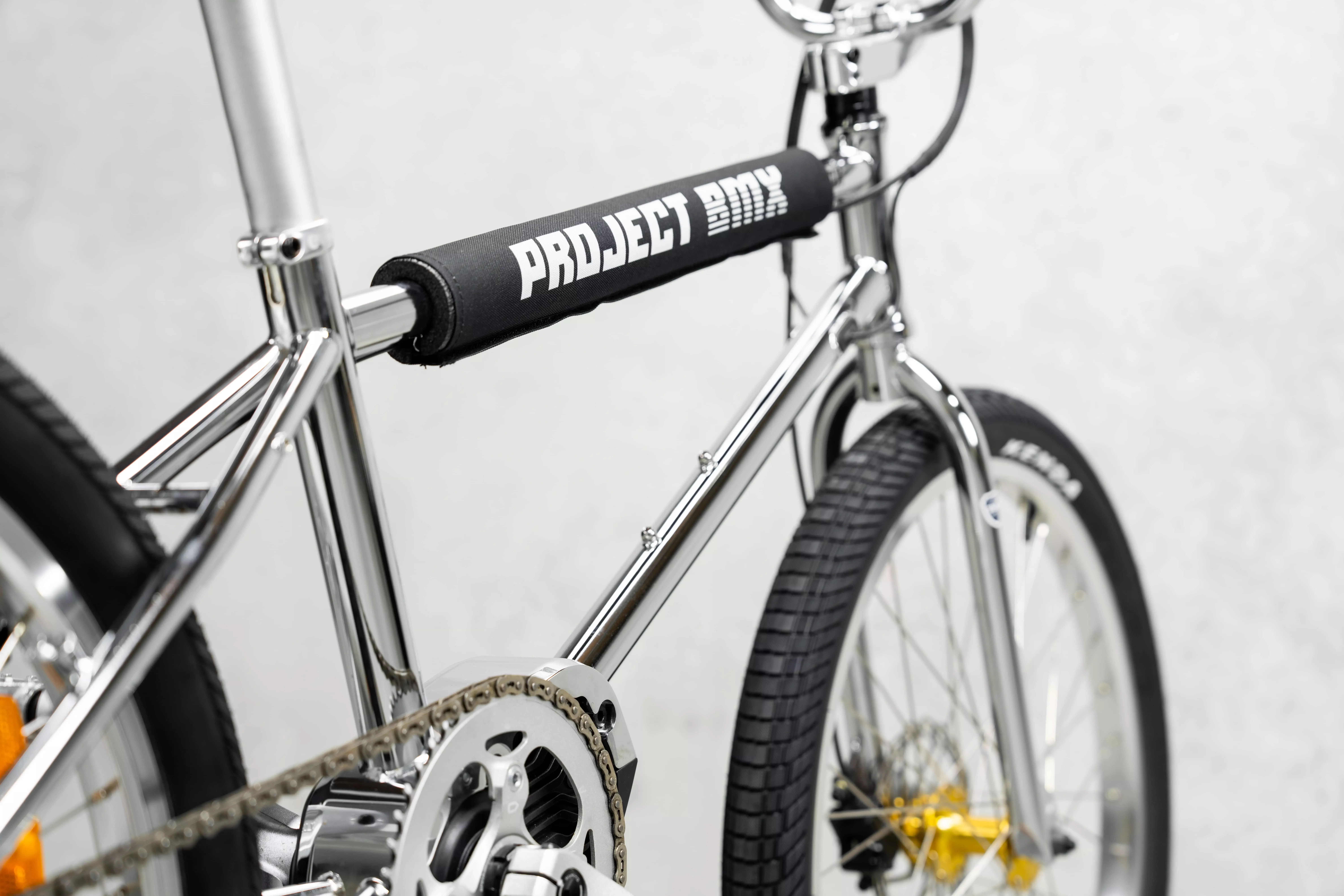

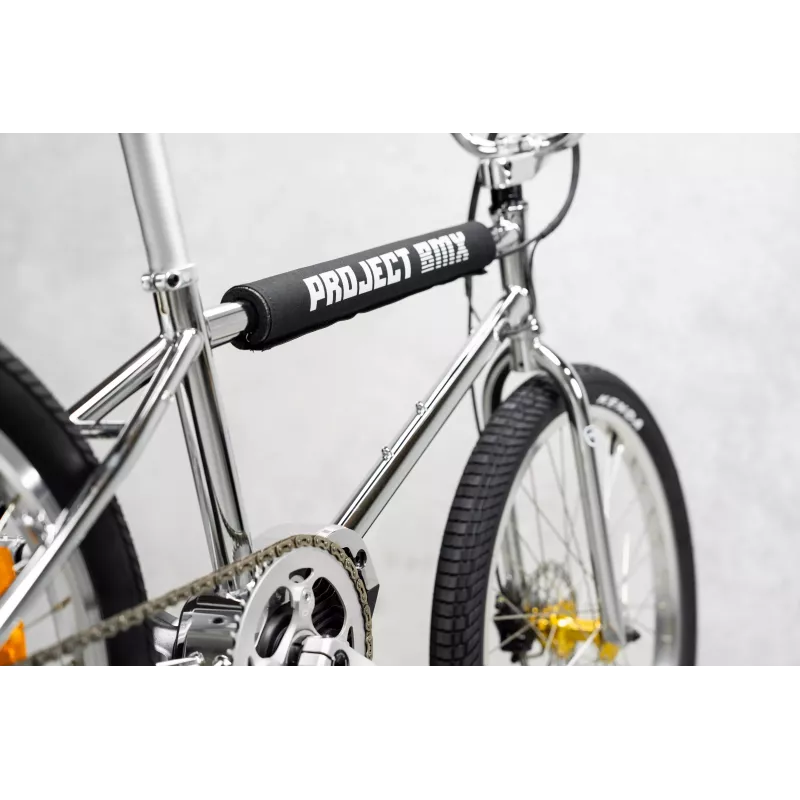

Frame

Available colours: Black or Silver – choose the style that suits you best!

Technical features:

Material: Chromoly
Weight: 15 kg
Certification: ISO4210
Adjustment: 140 mm tube adjustment
Headset: Integrated
Wheel base: 1060 mm (42")
Chain stay: 440 mm (17,3")
Stand over: 660 mm (26")
Seat post offset: 20 mm

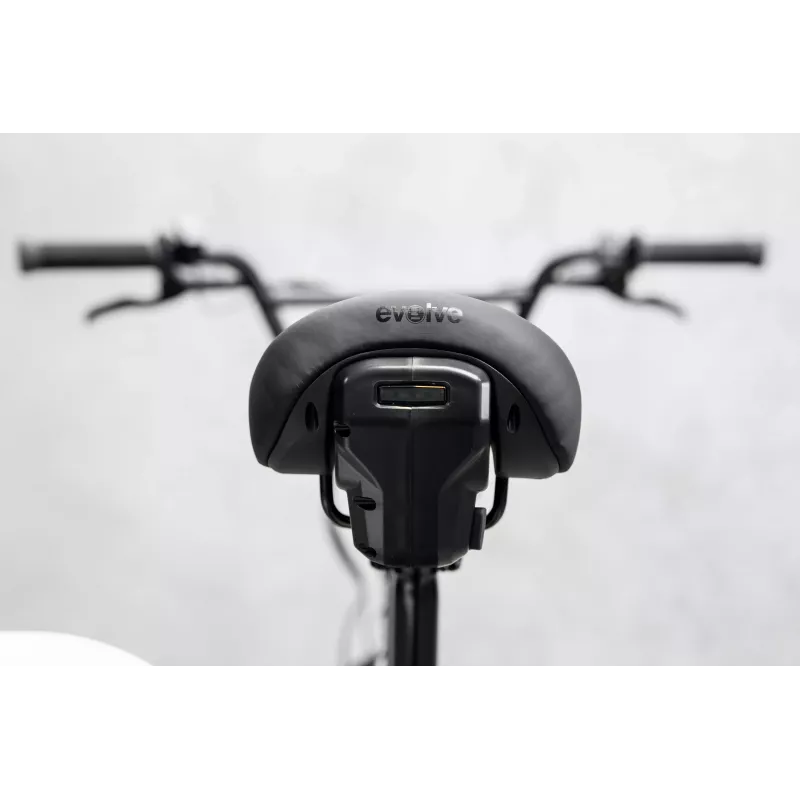

Saddle

Designed in partnership with saddle brand VELO, this saddle combines comfort, adjustability and innovation, with a rail and integrated lock for the Evolve battery.

Material: Nylon + carbon fibre
Certification: ISO 4210
Adjustments: Angle and fore-aft position

Speed Modes

With 5 assist levels, this e-bike adapts to every ride. From long cruises to daily commutes or steep climbs, each mode delivers the right power for smooth, comfortable pedalling with minimal effort. Enjoy optimised assistance across all terrain.

Control Display

The discreet, water-resistant LED display provides all essential rider information while preserving the clean aesthetic.

It shows battery level (5 steps), speed (km/h or mph), speed modes (1-5), error warnings (diagnostics/service) and controls the rear LED light (On/Flash/Off).

Spoked Wheel

Spoked wheels with sealed bearings 24"
ISO disc mount with 16-tooth sprocket
Alloy axle
Tyre: Kenda 24" x 2.10
Tread: Smooth road (slick)
Valve type: Schrader
Inner tube: 24x1.9/2.125
Peg compatible

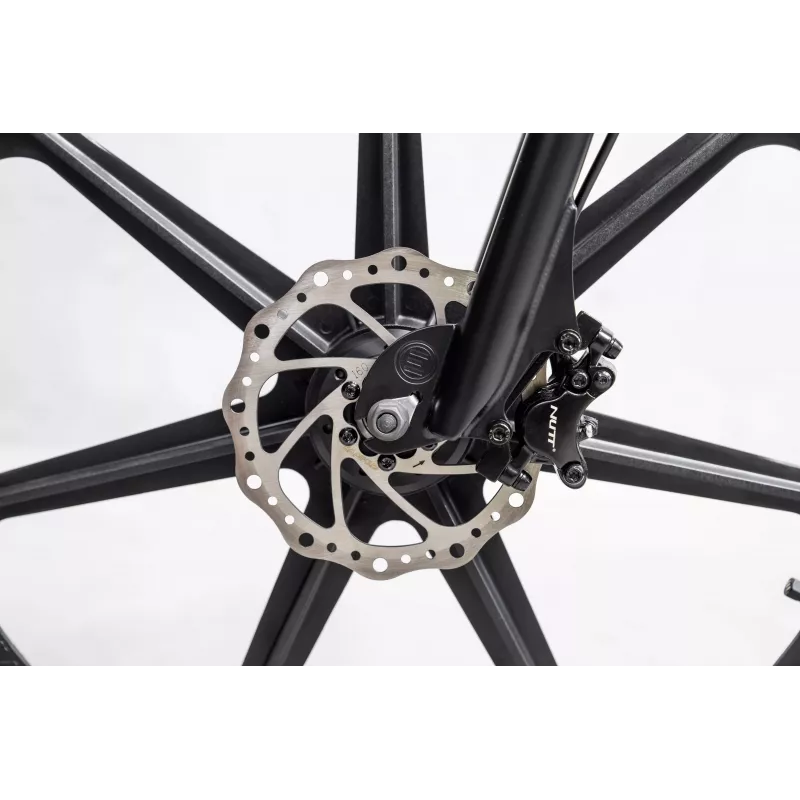

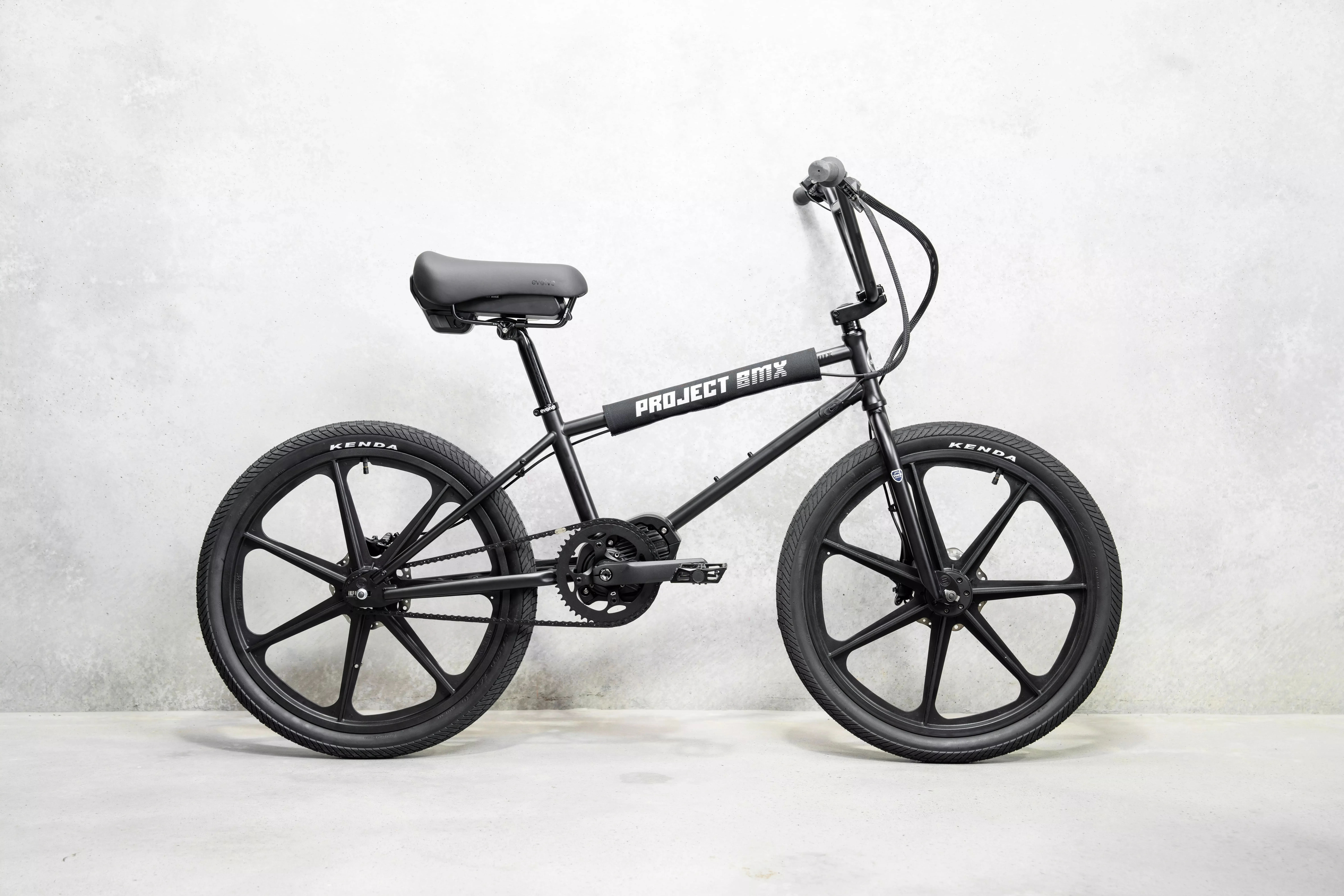

Skyway Tuff Wheel

Made in the USA from Zytel nylon, the Skyway Tuff 24" wheels are a retro BMX classic.

We designed a hub compatible with a brake disc to preserve their classic look while using hydraulic disc brakes front and rear.

Over to the riders

Specifications	Sizes
Overall length	1680mm (66")
Handlebar height	1080mm (42.5")
Wheel base	1060mm (42")
Minimum saddle height	855mm (33.6")
Maximum saddle height	995mm (39")
Chain length	440mm (17.3")
Standover height	660mm (26")
Top tube length - reach	570mm (22.4")
Wheel diameter	609mm (24")
Handlebar length	750mm (29.5")
Seat tube length	330mm (13")
Minimum pedal height	170mm (6.6")

Is Project BMX the E‑Bike for You?

What Is the Top Speed of the Project BMX Electric?

Project BMX reaches a top speed of 36 km/h, whether on assist or throttle mode, ideal for thrill-seekers.

What Range Does This Electric BMX Offer?

You can cover up to 60 km with pedal assist and around 25 km in throttle mode. A range suited to leisure rides and daily trips alike.

How Long Does It Take to Recharge the Battery?

The Samsung 48X 21700 battery recharges in about 3 hours thanks to the integrated fast-charging system.

Is There a Project BMX Version Allowed on Public Roads or Paths?

Yes. Alongside the “Private Land” version, a road-legal EDPM version is available.
👉 To comply with current regulations, this version has no throttle and operates with pedal assist only.

What Does the BAFANG Mid-Motor Bring to Project BMX?

The mid-motor offers better weight distribution, smooth pedal assistance and optimises energy efficiency to extend range.

What Riding Modes Are Available?

Project BMX offers 5 assist levels, adapting to your needs: daily commutes, long rides or technical climbs.

Is Project BMX Easy to Assemble on Delivery?

Yes. On delivery, simply attach the handlebar, saddle, pedals and front wheel, then carry out a few basic adjustments (brakes, tyre pressure, alignment).

Do You Deliver This Electric BMX Across Europe?

Yes, we provide fast delivery to most European countries, including France, Germany, Belgium, Italy, the Netherlands, Austria and Luxembourg, directly from our France-based warehouse.
