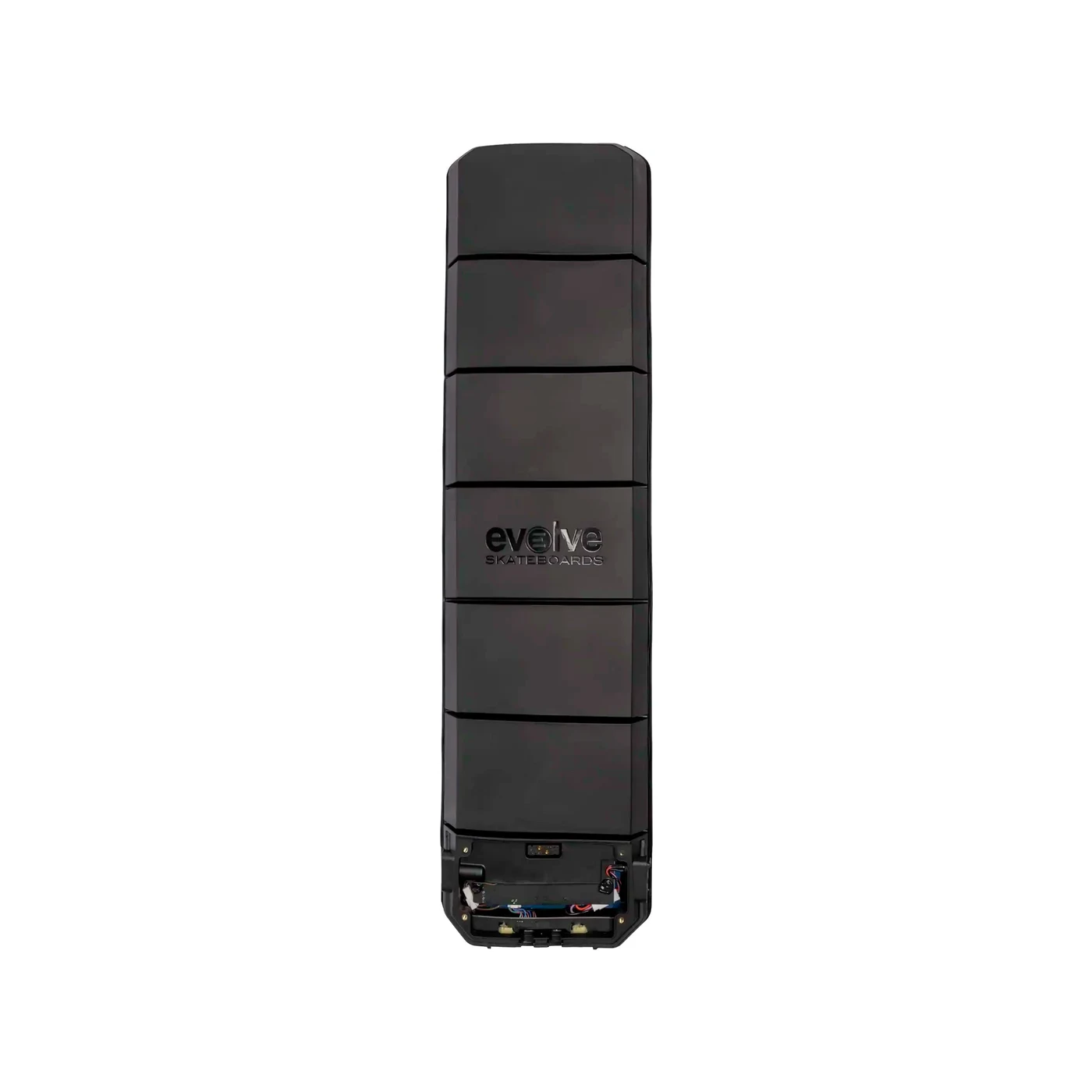

20AH 50S BATTERY – DIABLO BAMBOO / RENEGADE DIABLO
Official Evolve Samsung 50S 864 Wh Battery for Diablo Bamboo and Renegade Diablo
Official Evolve replacement battery for the Diablo Bamboo and Renegade Diablo: Samsung 50S 21700 cells in 12S4P, delivering 20 Ah at 43.2 V (864 Wh). This is the most powerful battery in the Evolve lineup, designed for two 3500 W motors. Original casing and BMS, direct replacement.
- Compatibility: Evolve Diablo Bamboo and Renegade Diablo
- Capacity: 20 Ah – 864 Wh (12S4P, 43.2 V)
- Cells: Samsung 50S 21700, renowned for their high discharge current.
- Charger: Official Evolve 5A charger – approximately 3.5 to 4 hours for a full charge
- Dedicated BMS: Diablo Bamboo BMS and Diablo Renegade BMS available separately
FEATURES
FREQUENTLY ASKED QUESTIONS
One battery for two boards?
Yes, the Diablo Bamboo and Renegade Diablo share the same battery part number at Evolve. However, the Diablo Carbon has its own distinct battery.
Is it the same as the Renegade V1?
No. The Renegade V1 uses a 20 Ah battery from an earlier generation, with a different architecture and connectors. The casing, connectors, and BMS are calibrated for a specific model. Installing a battery from another range can damage the electronics and voids the warranty.
How long does a full charge take?
Approximately 3.5 to 4 hours from 0 to 100% with the official Evolve 5A charger.
How is it shipped?
Like all standalone lithium-ion batteries, it is shipped under Class 9 dangerous goods regulations: delivery is to home addresses only; relay points are not available.
